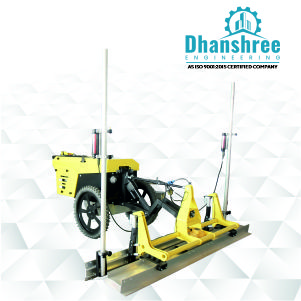

DS - WALK BEHIND LASER SCREED
Description
The DS Walk-Behind Laser Screed is a cutting-edge construction equipment designed for efficient concrete leveling. This machine utilizes laser technology for precision leveling and finishing of concrete surfaces. Its walk-behind design allows for ease of operation, providing accuracy and productivity in the construction of flat and level concrete floors.
Technical Specification
| Model | DSLS-325 |
| Generator | Honda EC2500X(2.6Kw, Single Cylinder Four Stroke Generator Set) |
| Package | Box 1: 2700*1050*1350mm Box2: 2900 ^ * 750^ * 920 |
| Laser Generator | LEICA(Switzerland) (635nm visible laser, self-leveling, level error±1.5mm/30m, effective launch distance 300m) |
| Laser Receiver | LEICA(Switzerland) (effective receiving distance 300m, accuracy of dead zone<±2.5mm |
| Control System | AC SERVO system |
| Driving System | PHASE (Italian) (steeples adjustment, turning faster than 1:2.5) |
| Airframe Adjustment | Level sensor automatic adjusting system |
| Slope Working | Single Phase Slope Automatic Adjustment |
| Wheel Tyre | 733nm ATV(1.8-2.2BAR)/3.0-21 narrow tyre (1.6-2.1 BAR) |
| Vibrating System | Eccentric Vibration Moror,300Hz |
| Centrifugal Force | 100Kgs |
| Vibrating Plate | Aluminium Alloy |
| Scraper Blade | Aluminium Alloy |
| Scraper Adjustment | Computer Control, Automatic Adjustment |
| Working Length | 2.6M |
| Reverse Speed | 2.5Km/H |
| Min. Ground Clearance | 355mm |
| Ground Flatness | <+ 2 * mm |
| Ground Elevation Error | <+ 7 * mm / 100 * m |
| Max Working Radius | <= 200m |
Working Efficiency/Hour | 200m ^ 2 / h + 350m ^ 2 / h |
| Dimension ( L ^ * W^ * H) | 2748 ^ * 2900^ * 2044 |
| Weight | 230Kgs |
